Belt conveyor is used to transfer stone aggregates and sand in mining, quarry, chemical industry, aggregate production, construction material recycling, powder grinding plant, ball mill plant etc.
Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.
+86-13298311030*24-hourWhatsapp/Wechat

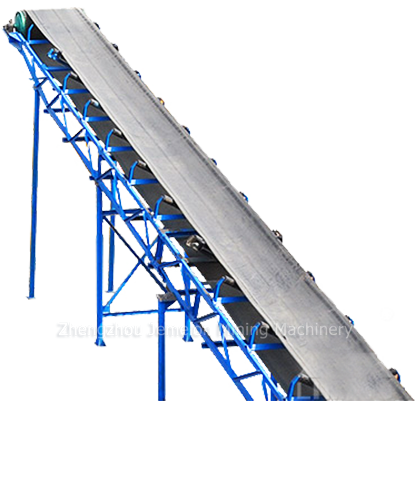

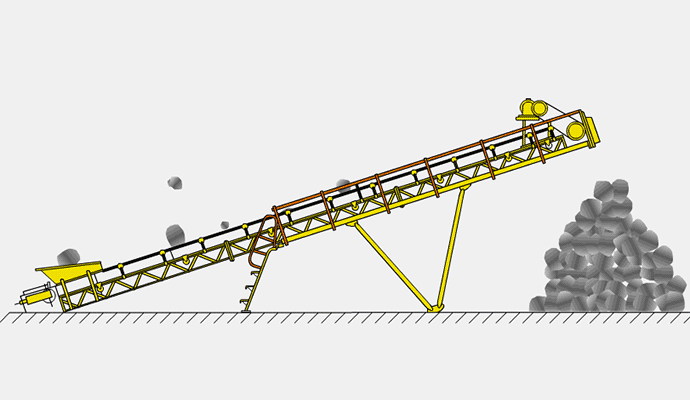

Belt conveyor made by our Shunky can convey many kinds of materials economically and efficiently. In industrial production, belt conveyor can be used as a link between two production equipments, which will realize the continuity and automation of production, improve efficiency and reduce labor intensity. The conveyor moves according to the principle of friction drive, and it has many advantages, such as large convey capacity, long convey distance, stable conveyance, no relative motion between conveyor and material, little noise, simple structure, convenient maintenance, energy saving and standardized parts.

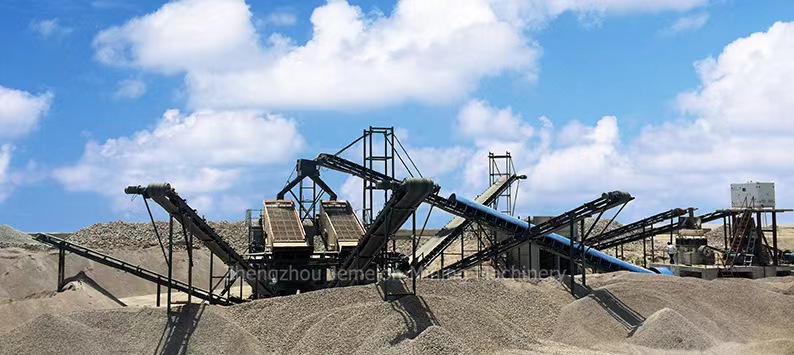

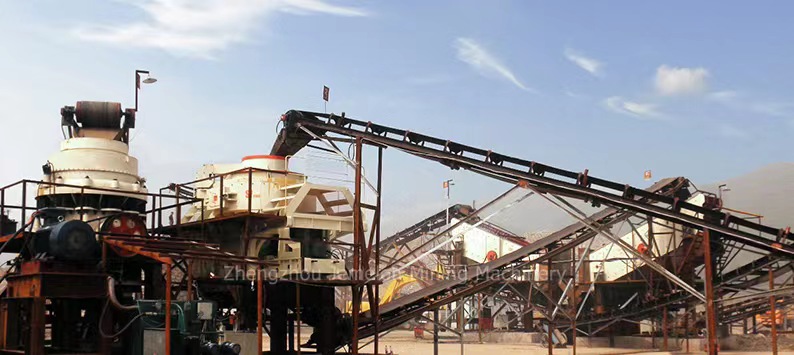

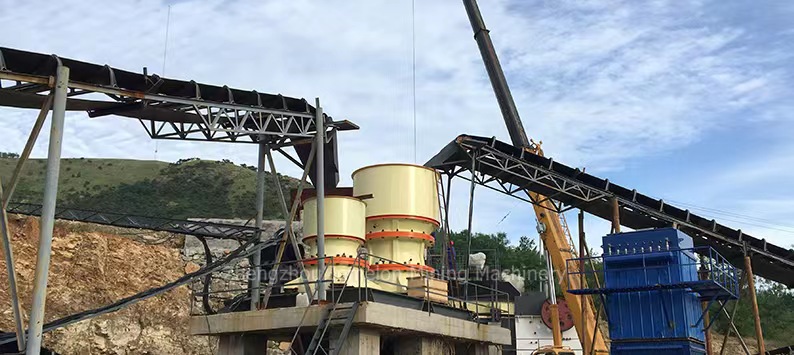

Belt conveyor is widely used in mining, metallurgy and coal industries to convey loose material or packaged material. According to the conveyor processing requirements, the conveying system can be one single machine or multi-conveyors or combined with other transfer equipments. The belt conveyor can be installed horizontally or obliquely to meet the needs of different transfer lines.
| Belt Width(mm) | 500 | 650 | 800 | 1000 | 1200 | 1400 |
|
Belt Length(m) /Power(kw) |
≤12/3 | ≤12/4 | ≤10/4 | ≤10/5.5 | ≤10/7.5 | ≤10/15 |
| 12~20/3.5~5.5 | 12~20/4~5.5 | 10~15/4~5.5 | 10~20/5.5~11 | 10~20/7.5~15 | 10~20/15~18.5 | |
| 20~30/5.5~7.5 | 20~30/5.5~11 | 15~30/5.5~15 | 20~40/11~22 | 20~40/15~30 | 20~40/30~45 | |
| Belt Speed(m/s) | 1.3~1.6 | 1.3~2.0 | ||||
| Capacity(t/h) | 40~80 | 80~120 | 120~200 | 200~320 | 290~480 | 320~600 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
