Widely used in road and bridge construction, urban construction, metallurgy, energy and other parts of the crushing, screening and so on
Applications: Limestone, granite, marble, basalt, iron ore, river pebbles, shale, blue stone, coal, cobblestone, construction waste, etc
+86-13298311030*24-hourWhatsapp/Wechat

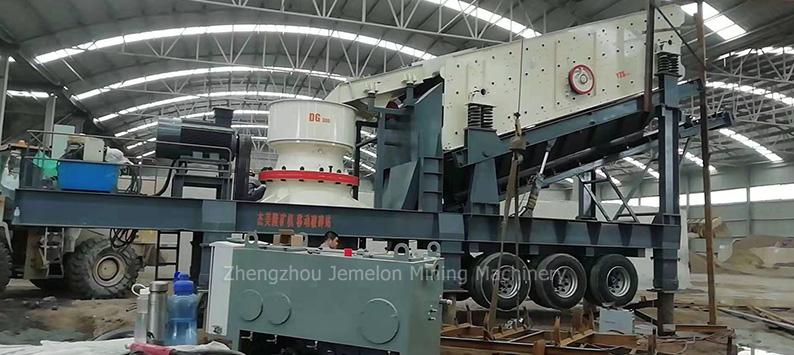

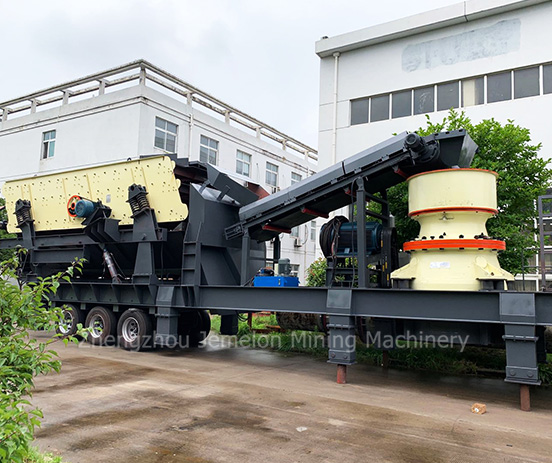

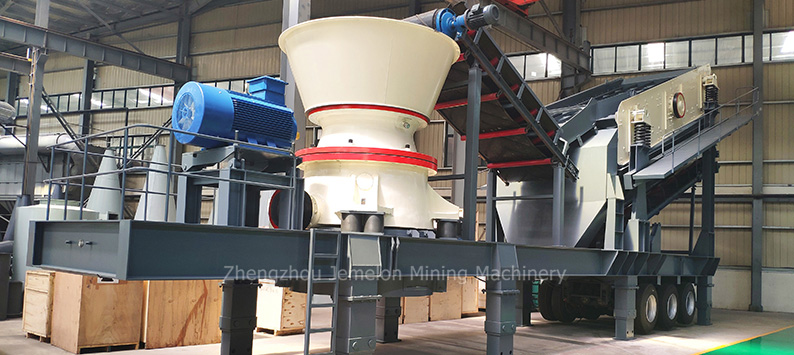

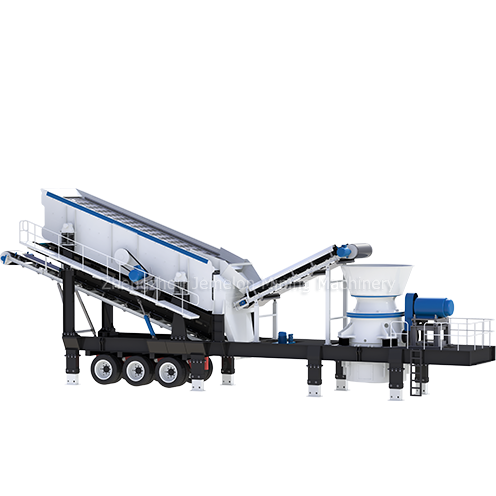

Cone type tire mobile crushing station is one kind of high efficiency rock crushing and screening equipment by our company develop and produce in combination with advanced technology and experience in domestic and abroad. This kind of mobile station main using in secondary and tertiary crushing and screening. The main equipment adopt high performance and high capacity CS high efficiency cone crusher, DG single hydraulic cone crusher, HPS multi-cylinder hydraulic cone crusher and so on.The equipment modular design, ideal equipment combination, high efficiency and low cost operation, crushing site, environment, transportation, energy and so on as the first solution to provide customers with better crushing process solutions. With high mobility, high reliability, beautiful shape and other characteristics, to reach the advanced level of mobile crushing station.
The hydraulic and mechanical support provided in the screening system can ensure the stability of the equipment during operation, hydraulic lifting can flexible switch the work and transport mode.
In the selection of the main crusher, we provide a variety of configurations, users can make flexible choice according to the investment plan, project situation. The shape of the finished product is a cube, the grain shape is excellent, and the powder content is low.
In the different configurations, belt conveyor adopts vehicle-mounted design with high efficiency, convenient when working and flexible when change working site.
Integrated crushing and screening, convenient and simple, which can operate directly, removing the infrastructure installation and working hours consumption.
The electric control system can integrated in the car body or independent in the control room, PLC control board as high-end optional.
Adopt compact ship design for frame chassis, the transportation length is shortened effectively, the flexible parking function is designed, which can save more time for the quick arrival site.
The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.
| Item | MJ-CS75 | MJ-CS160 | MJ-H200 | MJ-H300 | MJ-8010 |
| Transportation Size(L*W*H)(mm) | 14000*3100*4300 | 16000*3100*4500 | 16000*3100*4500 | 16000*3200*4500 | 15000*3200*4500 |
| Max Size(L*W*H)(mm) | 14000*3400*4700 | 16400*3400*4700 | 16400*3400*4700 | 17900*4100*6800 | 18800*10500*7050 |
| Weight(t) | 34.5 | 49.5 | 41 | 50 | 49 |
| Configuration Of Tires | double axies | triaxial | triaxial | triaxial | triaxial |
| Capacity(t/h) | 50-100 | 100-240 | 100-300 | 100-320 | 50-100 |
| Crusher Model | CS75 | CS160 | HP200 | HP300 | C80+CS100 |
| Discharging Belt Conveyor | B650*7m | B800*7.5m | B800*7.5m | B1000*8m | B800*11m(Main Belt) |
| Return belt conveyor1 | B650*9.5m | B800*9.5m | B800*9.5m | B800*9.5m | B800*16.5m(Belt on screen) |
| Belt conveyor under screen1 | B650*5m | B800*6m | B800*6m | B800*6m | B600*7.5m(Belt on screen) |
| Belt conveyor under screen2 | B800*6m | B800*7m | B800*7m | B800*7m | B600*5m(Side exit belt) |
| Screen Model | 3YZS1848 | 3YZS1860 | 3YZS1860 | 3YZS2160 | 3YZS1848 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
