widely used in quarry, mining, coal mining, concrete mixing station, dry mortar,power plant and so on.
Applications: river stone, granite, basalt, iron ore, quartz, diabase, iron ore, gold ore, copper ore, etc
+86-13298311030*24-hourWhatsapp/Wechat

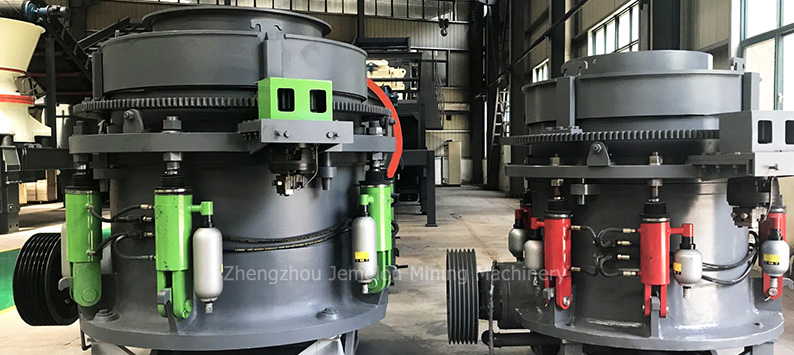

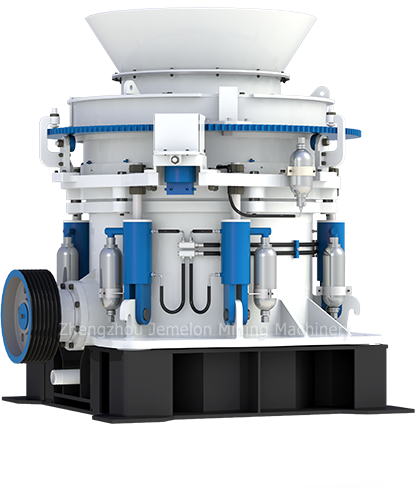

HPS hydraulic cone crusher is an advanced crushing equipment developed by absorbing the advanced crushing technology in the world today, which is suitable for crushing various ores and rocks with hard and medium hardness. In the design process, the rotational speed, stroke and crushing cavity shape are optimized and combined to realize the inter-particle laminated crushing, significantly improving the output and Product shape.
Upgraded structure and high efficiency. Transmission parts and the structure of lubrication seal are optimized further based on the structure of fixed main shaft and eccentric shaft rotates around main shaft. This machine has the features of stronger loading capacity, the biggest installed power in the same model of this industry, smaller size, higher efficiency, lower noise.
High handling capacity. The perfect combination of crushing stroke, crushing speed and crushing chamber makes the capacity increase by 35%-60% than traditional spring cone crusher in production.
The materials are crushed under the adoption of unique laminated crushing principle, and the efficiency is higher because of the optimized equipment and cavity. Meanwhile high crushing efficiency brings lower consumption of wearing part, cubic finished product shape and high content fine-grained product, which improves the quality of finished product and decreases the cost of equipment and whole system.

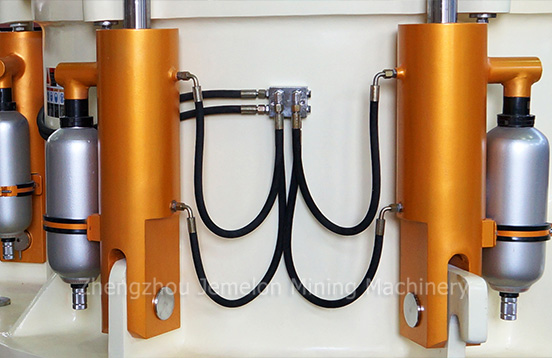

Full hydraulic operation is applied on cleaning cavity, overload protection, adjustment and locking. It works stably and reliably and operates conveniently .Meanwhile the structure of hydraulic system is optimized fully, the adjustment and control are more accurate, the responding of automatic protection is more sensible.
HP series multi-cylinder hydraulic cone crusher has several medium crushing and fine crushing cavities, which can be only with changing relevant several parts as cavity lining plate, etc. It meets the process requirements of medium crushing and fine crushing better with combining the laminated crushing principle, realizing multiple functions.

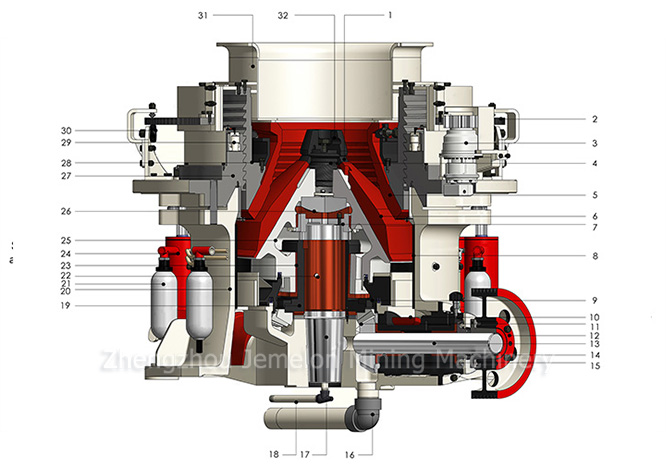

The whole working process of HP multi-cylinder hydraulic cone crusher is that motor drives the rotation of transmission shaft by belt pulley and v-belts, then transmission shaft drives the rotation of eccentric sleeve around the main shaft through the spiral bevel gear, breaking the materials continuously.The material is crushed from all directions, crushed and ground according to their own grain, which formed the high compressive strength building aggregates. The materials that meet the requirements discharged from the crushing wall, and the remaining material continues to be crushed until it becomes standard product.
| Model | Type of chamber | Standard | Short head | Power(kw) | capacity(t/h) | ||
| Feed Opening(mm) | Min.Output size(mm) | Feed Opening(mm) | Min.Output size(mm) | ||||
| HPS200 | Coarse | 185 | 19 | 76 | 10 | 132-200 | 90-255 |
| Medium | 125 | 17 | 54 | 6 | |||
| Fine | 95 | 13 | 23 | 6 | |||
| Superfine | - | - | 10 | 5 | |||
| HPS300 | Oversize | 230 | 25 | - | 180-250 | 115-440 | |
| Coarse | 210 | 20 | 75 | 10 | |||
| Middle | 150 | 15 | 50 | 8 | |||
| Fine | 105 | 10 | 20 | 6 | |||
| Superfine | - | - | 20 | 6 | |||
| HPS400 | Oversize | 295 | 30 | - | - | 280-335 | 140-630 |
| Coarse | 250 | 25 | 90 | 10 | |||
| Middle | 195 | 20 | 50 | 8 | |||
| Fine | 110 | 14 | 40 | 6 | |||
| Superfine | - | - | 30 | 6 | |||
| HPS500 | Oversize | 330 | 30 | - | - | 355-450 | 175-790 |
| Coarse | 285 | 25 | 90 | 13 | |||
| Middle | 200 | 20 | 55 | 10 | |||
| Fine | 133 | 16 | 40 | 8 | |||
| Superfine | - | - | 35 | 6 | |||
| HPS800 | Oversize | 353 | 32 | - | 13 | 550-630 | 260-1200 |
| Coarse | 297 | 32 | 155 | 10 | |||
| Middle | 267 | 25 | 92 | 6 | |||
| Fine | 219 | 16 | 33 | - | |||
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
