Mining, smelting, building materials, roads, railways, water conservancy and chemical Industries
Applications: Limestone, granite,marble, basalt, iron ore, river pebbles, shale, bluestone, coal, cobblestone, construction waste, etc
+86-15037172876*24-hourWhatsapp/Wechat

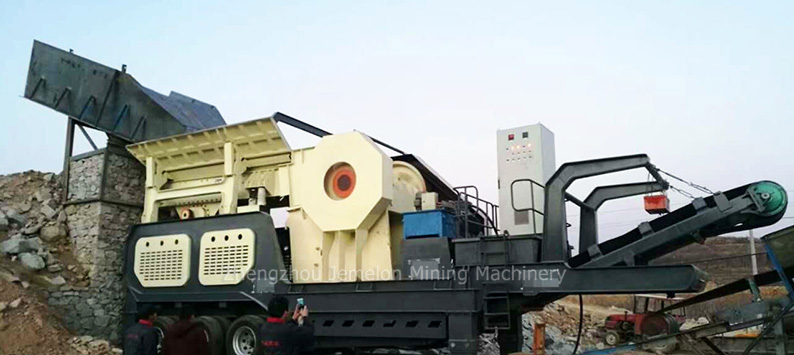

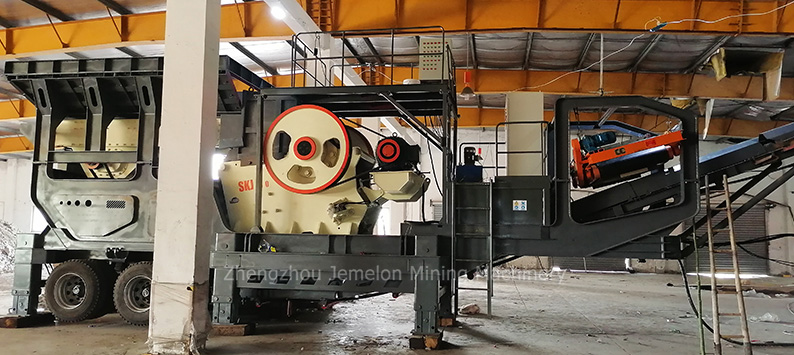

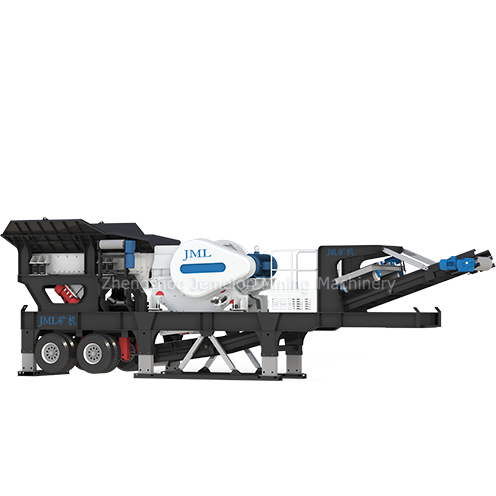

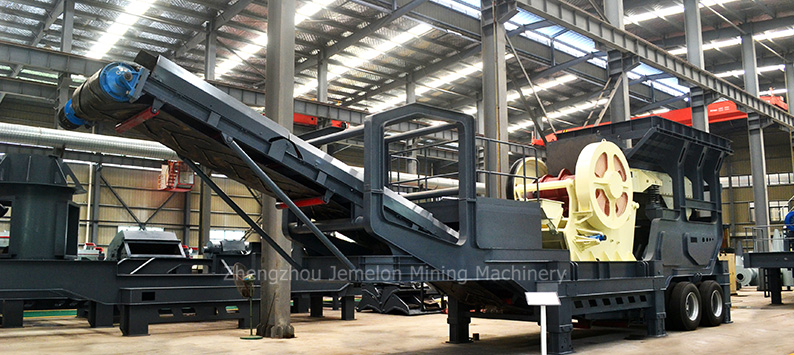

Jaw type tire mobile crushing station adopt advanced heavy-ship design, the whole structure is stronger, the operation is more stable. The main equipment can choose P6S series European jaw crusher, PE series jaw crusher, etc. The crushing ratio is high, which is the first choice of primary crushing.
The high quality and thickened steel frame structure be adopted by our company for mobile crushing station, which can protect the crushing station running smoothly, and prolong the service life.
Adopt compact ship design for frame chassis, the transportation length is shortened effectively, the flexible parking function is designed,which can save more time for the quick arrival site.
Each leg can rise independently, which can effectively to avoid the offset of support ground uneven and uneven intensity.

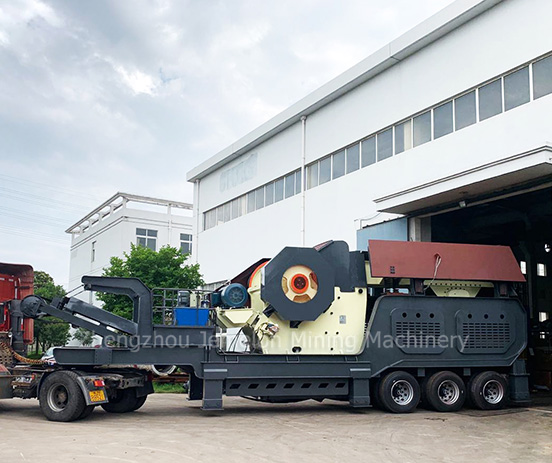

Steering traction shaft, small turning radius, flexible, easy to road transport and into work site, provides a more flexible working space.
Processing materials in work site, reduce the material transport cost greatly.
Multi configure designs, design different crushing and screening system according to the different requirements.
Jaw Type Tire Mobile Crusher Station is one kind of mobile rock crusher. According to the different requirements of different crushing process, Mobile crushing and screening plants can be the following two processes of "crushing first, screening second" or "screening first, crushing second". The mobile stone crushing plant can be composed of two-stage plants or three-stage plants. The two-stage plants consists primary crushing system and secondary crushing system, while the three-stagesystems includes primary crushing plant, middle crushing plant and tertiary crushing plant, each of which is of high flexibility and can be used individually.
| Model | MJ-E69 | MJ-E75 | MJ-E912 | MJ-C106 | MJ-C110 |
| Transport Size(L*W*H)(mm) | 11900*2550*3650 | 13100*2550*4450 | 14600*1950*4500 | 12810*2260*3500 | 15400*1950*4500 |
| Max Size(L*W*H)(mm) | 12100*2900*4060 | 13300*2950*4810 | 14600*3300*5300 | 12810*4080*3950 | 15400*3300*5700 |
| Weight(t) | 39 | 57 | 83 | 36 | 65 |
| Configuration Of Tires | Double axles | triaxial | triaxial | Double axles | triaxial |
| Crusher Model | PE600*900 | PE750*1060 | PE900*1200 | C106 | C110 |
| Max Feeding Size(mm) | 480 | 630 | 750 | 600 | 720 |
| Discharge Port Adjustment Range(mm) | 65-160 | 80-140 | 100-200 | 75-225 | 150-275 |
| Capacity(t/h) | 90-180 | 110-320 | 220-450 | 150-500 | 300-650 |
| Vibrating Feeder Model | GZD960*3800 | GZD1100*4200 | GZD1300*4900 | GZD1100*4200 | GZD1100*4500 |
| Main Belt Model | B800*8.5m | B1000*9m | B1200*9.5 | B1000*9.5m | B1200*9.5m |
| Midel Of Side Outlet Belt(Optional) | B650*4m | B650*4m | B650*4m | B650*4m | B650*4m |
| Model Of Generator Set (Optional) | 160kw | 200kw | 220kw | 250kw | 300kw |
| Iron Remover Model (Optional) | RCYD(C)-6.5 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-10 |

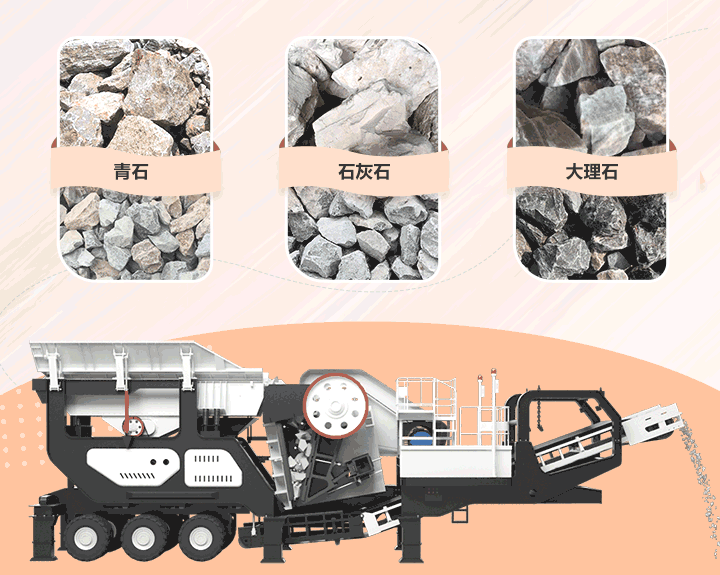

Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
