Mobile sand making plant can be used in pebble,rock( the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, slags, artificial sand production. It is especially used to process raw material to excellent aggregate and sand for railway.
Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.
+86-15037172876*24-hourWhatsapp/Wechat

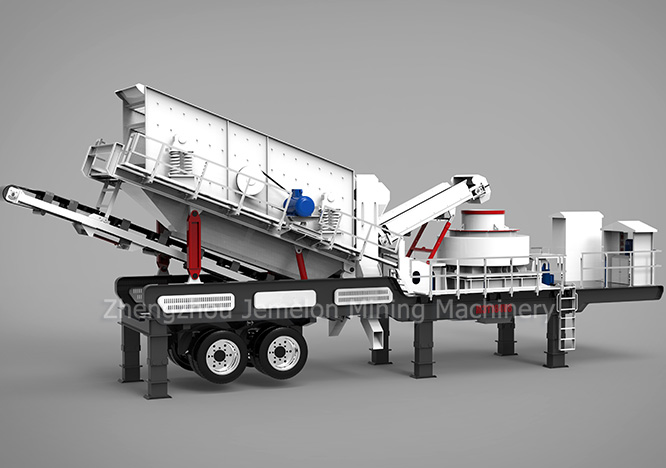

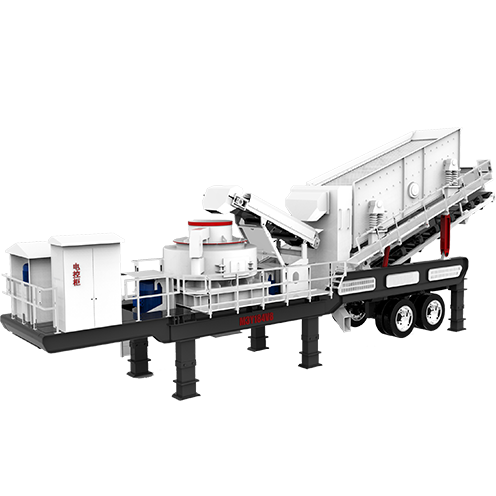

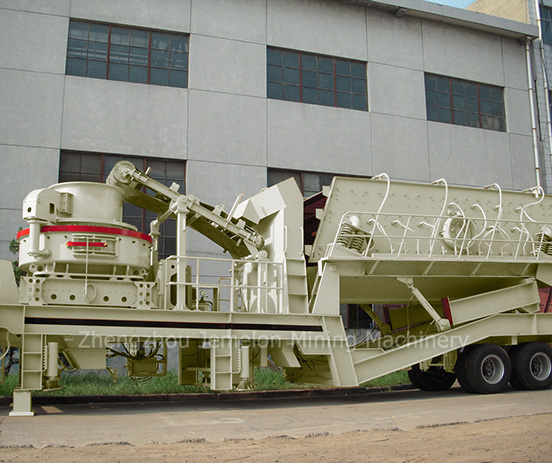

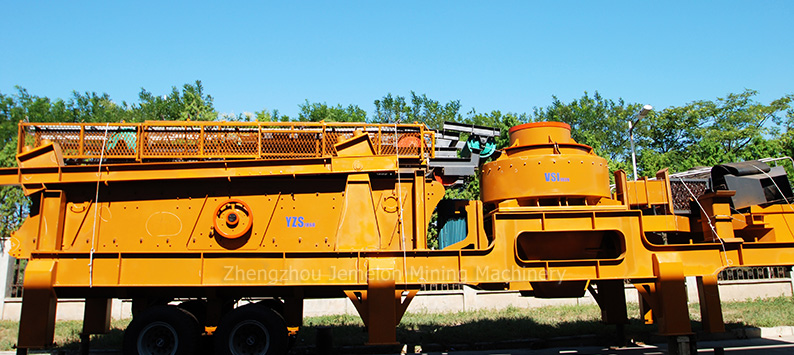

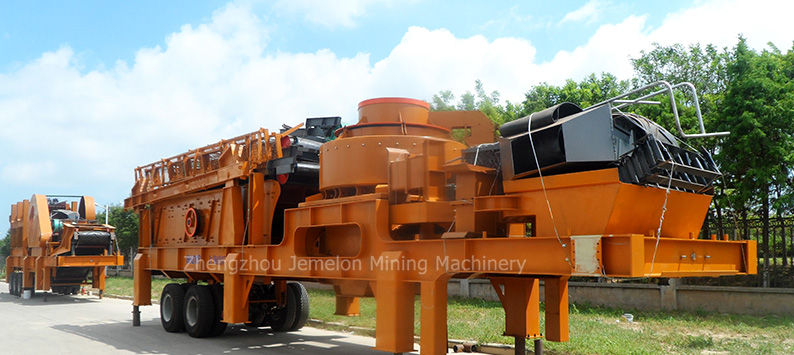

Mobile Sand making machine is portable type VSI crusher and screening plant. It is indispensable machine for artificial sand making. Mobile sand making plant is ideal for tertiary crushing and screening applications in quarrying and mining.
Powerful crushing performance.
Flexible configuration and great adaptability.
Strong, durable, reliable, large loading capacity.
Mobile sand maker is including hopper, VSI sand maker, vibrating screen , and conveyor belt, truck mounted frame foundation. The power can be electricity or diesel generator set, it reducing the cumbersome process of infrastructure installation and labor consumption, and truly provide customers with convenient, efficient, low-cost crushing equipment. When mobile VIS crushing plant works, the raw material falls through upper inlet into rotating impeller. Due to centrifugal force, the material will collide with surrounding ones and break. The final product will come out from underneath outlet. The screen will control size of final material.
| Model | PP5000VSI | PP5000VSI3S | PP6000VSI | PP6000VSI2S | PP7000VSI | PP7000VSIS |
| Transport size | ||||||
| Length(mm) | 9800 | 11280 | 11500 | 15470 | 1100 | 15420 |
| Width(mm) | 2490 | 2780 | ||||
| Height(mm) | 4200 | 2500 | 3850 | 4180 | 3820 | 4150 |
| Alex weight(kg) | 14600 | 19200 | 14000 | 22300 | 15000 | 21100 |
| King pin weight(kg) | 7000 | 8800 | 6000 | 10300 | 8200 | 11500 |
| Vertical shaft impact crusher | ||||||
| Model | VI-5000 | VI-5000 | VI-6000 | VI-6000 | VI-7000 | VI-7000 |
| Max input size(mm) | 65(80) | 65(80) | 70(100) | |||
| through-put capacity(t/h) | 80-150 | 80-150 | 120-250 | 120-250 | 180-350 | 180-350 |
| Vibrating screen | ||||||
| Model | 3YK1545 | 2YK1860 | YK2160 | |||
| Belt conveyor | ||||||
| Model | B650X6.5m | B800X7.2m | B800X6.7m | B1000X8.6m | B1000X6.4m | B1000X8.6m |
| Alex number | 1 | 2 | 2 | 2 | 2 | 2 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
