It is used in metallurgy, building materials, chemical industry, hydro power and other industries
Applications: Crushing all kinds of materials with medium or above hardness
+86-13298311030*24-hourWhatsapp/Wechat

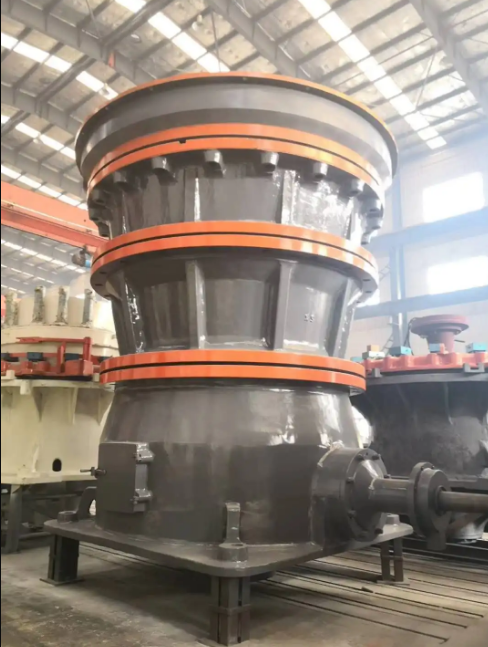

The PXZ gyrator crusher produced by our company is widely used in metallurgy, building materials, chemical industry, hydro power and other industries. It breaks all kinds of materials with medium or above hardness. It is one of the main equipment for coarse crushing ore or rock. It has the advantages of large crushing ratio, high production capacity and uniform product particle size. It is suitable for large open-pit mines and concentrators .
The frame is made of high-strength cast steel with high safety factor, which can ensure trouble free operation even under very bad crushing conditions.
Heavy duty spindle, made of high-strength alloy steel, has high strength and high reliability.
Hydraulic support structure can realize overload protection.
The spindle position indicator can realize the real-time monitoring of the spindle, display the spindle position, and adjust the size of the ore discharge port through the hydraulic system.
The air sealing system can effectively seal the parts such as big and small gears.
The electric dry oil lubrication pump is used to automatically lubricate the grease lubricated parts such as beam bearings at regular intervals.
The centralized lubrication system can lubricate the eccentric sleeve, large and small gears and transmission bearings at the same time.
The whole machine adopts PLC centralized control to realize automatic control.

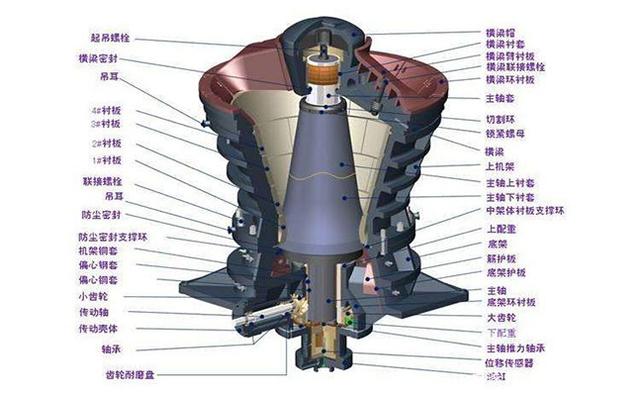

The rotary crusher is composed of transmission, base, eccentric sleeve, crushing cone, middle frame, cross beam, prime mover, oil cylinder, hydraulic pressure, pulley, electrical and dry and thin oil lubrication. The motor drives the eccentric sleeve to rotate through the belt pulley and bevel gear. When the eccentric sleeve rotates, it drives the crushing cone to swing around the center of the crusher. Thus, the crushing conical surface sometimes approaches and sometimes leaves the fixed conical surface, so that the materials fed into the crushing cavity are continuously crushed by extrusion and bending. The crushed material is discharged from the bottom of the crushing chamber by its own weight.
| 型号规格 | 给矿口尺寸 (mm) | 排矿口尺寸(mm) | 大给料尺寸(mm) | 排矿口调整范围 | 产量(t/h) | 破碎圆锥底部直径(mm) | 主电机 | 机器总重(T) |
| 功率(KW) | ||||||||
| PXZ0710 | 700 | 100 | 582 | 100-130 | 310-400 | 1400 | 132-185 | 91 |
| PXZ0909 | 800 | 90 | 750 | 90-120 | 380-510 | 1650 | 220-280 | 141 |
| PXZ0913 | 130 | 130-160 | 625-770 | |||||
| PXZ0917 | 170 | 170-190 | 815-910 | |||||
| PXZ1216 | 1000 | 160 | 1000 | 160-190 | 1250-1480 | 2000 | 315-355 | 228 |
| PXZ1221 | 210 | 210-230 | 1560-1720 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
