XSD Sand Washing Machine

Construction site, sand and stone factory, hydro power station, metallurgy, building materials, and other industries washing

Applications: Limestone, river stone, blue stone, pebble, weathered sand, basalt, granite, quartz, diabase etc

20-160T/HCapacity ≤10Max.feeding Size(mm)

+86-13298311030*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

XSD sand washing machine with its wheel-like structure is the necessary equipment used with sand making machine. It can wash stone powder and residual away from the mostly. XSD sand washing machine adopts advanced technology, takes the sand industry’s practical condition into consideration, has the features like high clean ratio, reasonable structure, high handling capacity, economical power cost, less loss. Especially the well-designed structure makes transmission part isolated from water and sand, so the malfunction is reduced enormously. So this sand washing machine is the best choice for product’s updating and upgrading.

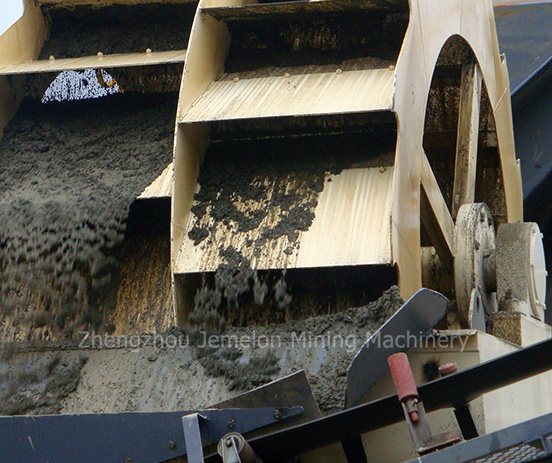

XSD Sand Washing Machine

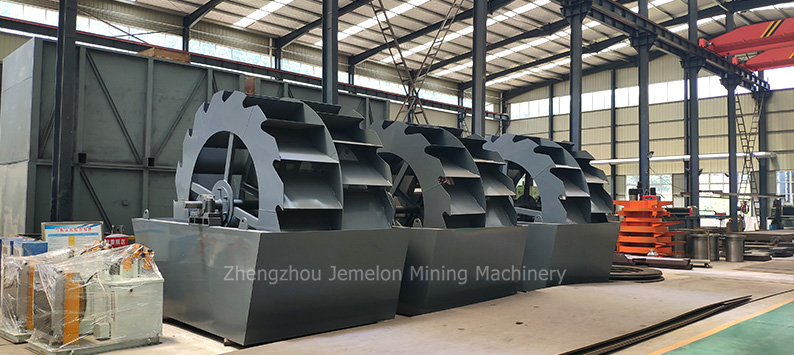

XSD Sand Washing Machine

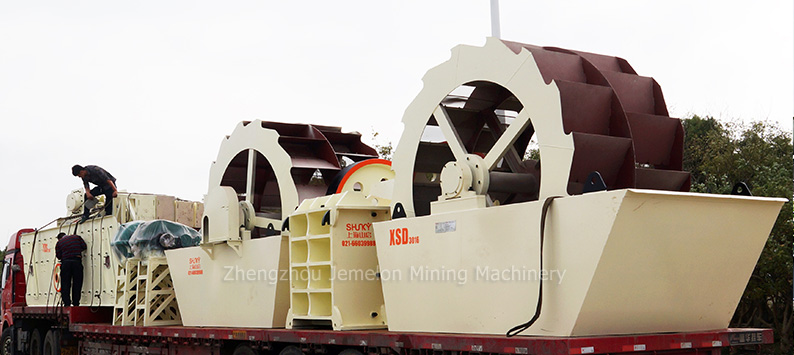

XSD Sand Washing Machine


02Product Brief Introduction

  • The sand washing machine has simple structure, big gap between impeller transmission bearing system and water as well as raw materials, so that it protects the bearing from dipping into the water, sand and other pollutants.

  • High degree of automation and low failure rate of sand washer,there are no wearing parts except sieves.

  • The use of fully enclosed oil bath transmission device, adjustable overflow weir plate, so that the series of products efficient, durable, cleaning, dehydration effect is good.

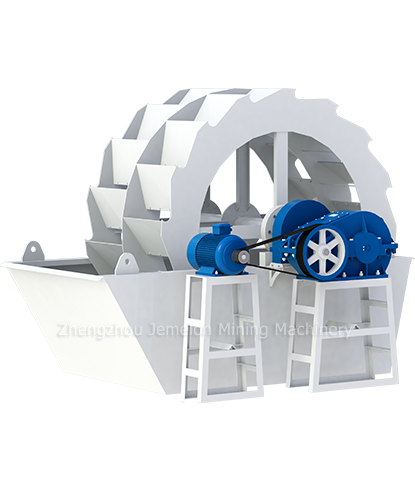

XSD Sand Washing Machine

03Working Principle

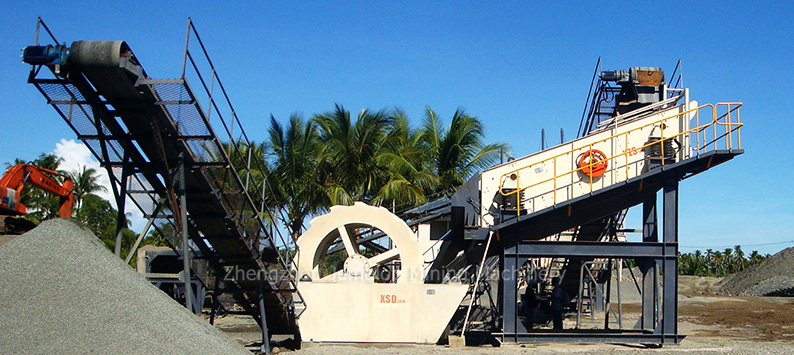

XSD Sand Washing Machine

When XSD sand washing machine begin running, the impeller rotates slowly drived by motor and reducer, sand and gravel from the feed chute into the wash tank cleaning, rotation of the impeller take the water and sand away through the sieve filter out the clean sand. Finally, gravel from the rotating impeller into discharge chute and completion of gravel cleaning effect.

04Technical Parameters

XSD Sand Washing Machine

 Model

XSD-2610

XSD-2816

XSD-3016

XSD-3620

 Wheel Size (mm)

2600×1000

2800×1600

3000×1600

3600×2000

 Wheel Speed(r/min)

1.178

1.177

1.179

1.15

 Capacity(t/h)

20-50

30-60

50-120

80-160

 Max.feeding Size(mm)

≤10

≤10

≤10

≤10

 Power(kw)

7.5

7.5-11

11-15

20-30

 Model Of Gear Box

ZQ400-50-I-Z

ZQ650-50-I-Z

ZQ650-50-I-Z

ZQ650-50-I-Z

 Dimension(mm)

3600×2116×2690

3964×3015×2980

3964×3015×3080

4624×3443×3680



05Application field

+86-13298311030*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
