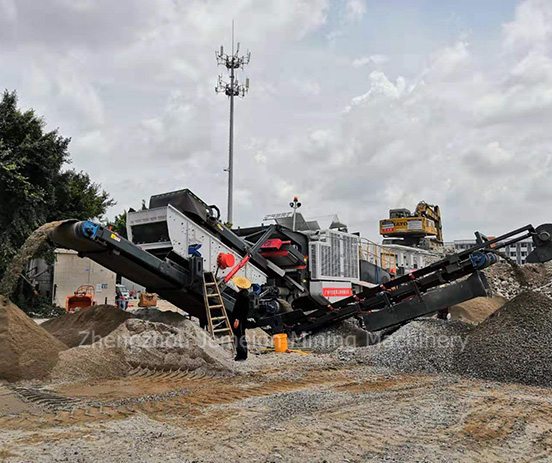

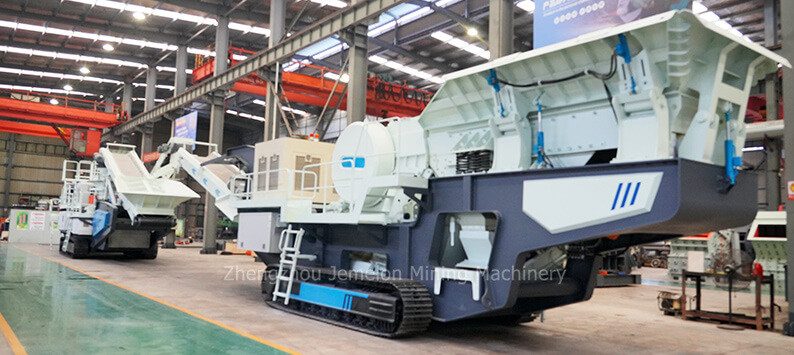

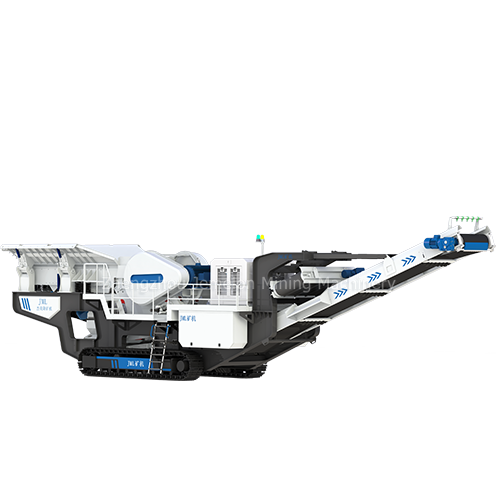

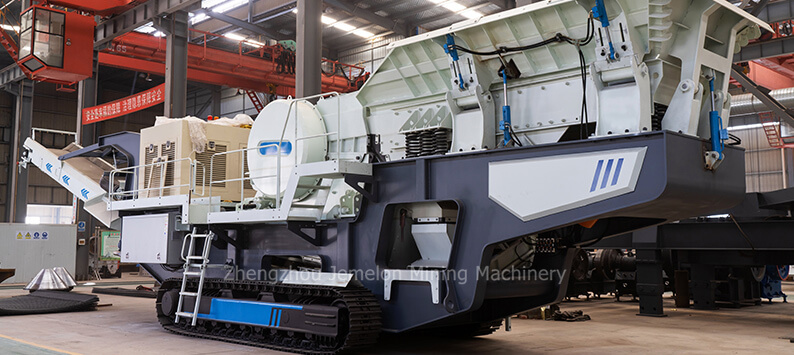

Crawler crushing station is widely used in mining ore crushing, construction waste recycling, construction aggregate production, highway, railway, road and bridge construction and other industries.
Applications: It is applied to the crushing of various hard rock materials and ore materials, such as granite, basalt, marble shale, sandstone, quartz, limestone, iron ore, copper ore, manganese ore, coal gangue, non-ferrous metal ore, pebble and construction waste of urban demolition.
+86-13298311030*24-hourWhatsapp/Wechat
Crawler crushing station is mainly used to process materials in metallurgy, chemical industry, building construction, hydropower project, etc. which needs to be moved around frequently. It is especially applied in the crushing and screening work of movable materials in highway, railway and hydropower engineering project. Users can adopt a variety of configuration forms according to different kinds of raw material processed, scales, and final products. In recent years, it has made outstanding contributions in the construction wastes recycling engineering. Integrated mobile station reduces the difficulties in building infrastructure for separated components and installing auxiliary facilities. It can save a lot of infrastructure and relocation cost. Besides, it also can conduct crushing work on site and move according to the sites of raw materials, which greatly reduce the transportation cost.
Wheel-mounted traction, compact structure and stability make mobile crushing station satisfy the demand of mobility no matter at the work site or on the road. Various models can quickly combine with other models to meet the different needs of production.
The work is conducted by various equipments which can crush the materials on the site. The finished products can meet the needs of customers directly, which reduces the material transportation cost.
This crushing station is equipped with independent generator. The machine can work normally even there is no local power. At the same time, we can customize mobile crushing plant according to customer's site, quality of materials and shape of products.
Mobile crushing station integrates the superior vibrating feeder, crushers, vibrating screen, vehicle motor and control box as a whole, which makes the station have compact structure and reliable running.
Mobile crushing station can be put into use just after simple processing of supporting parts. It is convenient to disassemble and transport without any residual loss if it need be moved to other places.
The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.
|
Item |
MC-C106 |
MC-C116 |
MC-F250S |
MC-F350S |
MC-H300S |
MC-H400S |
|
Capacity（t/h） |
140-420 |
170-600 |
150-300 |
180-400 |
100-380 |
150-450 |
|
Host Type |
C106 |
C116 |
F250S |
F350S |
Hp300 |
Hp400 |
|
Feeding Capacity（t/h） |
430 |
600 |
500 |
650 |
500 |
500 |
|
Max Feeding Size(mm)（mm） |
650 |
680 |
500 |
600 |
180 |
210 |
|
Discharge Opening Adjustment Range（mm） |
70-200 |
80-200 |
20-150 |
20-150 |
10-45 |
10-45 |
|
Main Belt Conveyor(W*L)（mm） |
1000×10000 |
1200×12000 |
1000×9900 |
1200×11000 |
1000×10000 |
1200×11000 |
|
Main Engine Power（KW） |
110 |
132 |
250 |
280 |
220 |
315 |
|
Overall Power（KW） |
200 |
250 |
400 |
500 |
350 |
500 |
|
Transport Size(L*W*H)(mm) |
14900×3000×3600 |
15200×3200×3700 |
19000×3600×3800 |
17000×3200×3800 |
17000×3200×3800 |
19500×3900×3800 |
|
Total Weight（t） |
45 |
58 |
60 |
65 |
58 |
65 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
