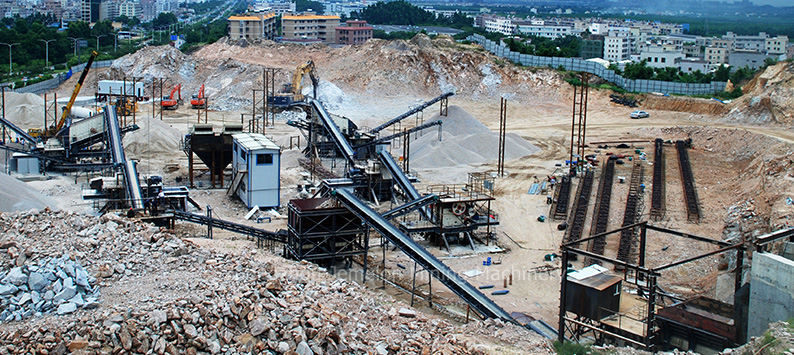

Combined Type Tire Mobile Crushing Station is widely used in mining ore crushing, construction waste recycling, construction aggregate production, highway, railway, road and bridge construction and other industries.
Applications: It is applied to the crushing of various hard rock materials and ore materials, such as granite, basalt, marble shale, sandstone, quartz, limestone, iron ore, copper ore, manganese ore, coal gangue, non-ferrous metal ore, pebble and construction waste of urban demolition.
+86-15037172876*24-hourWhatsapp/Wechat

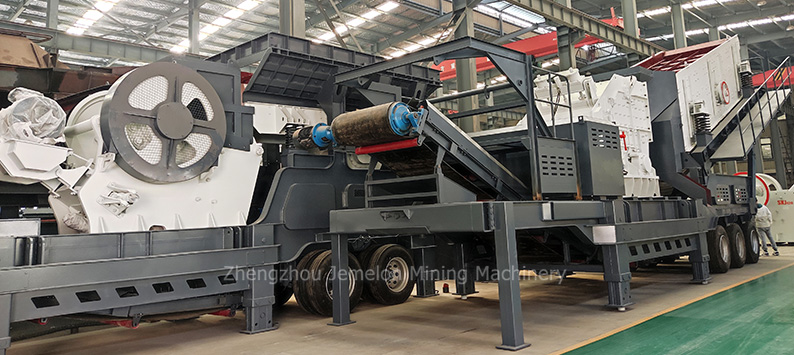

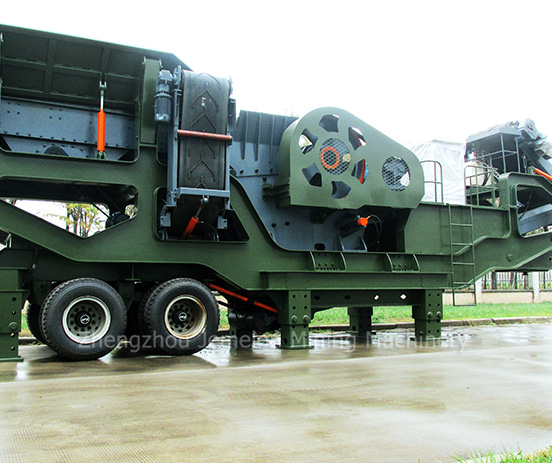

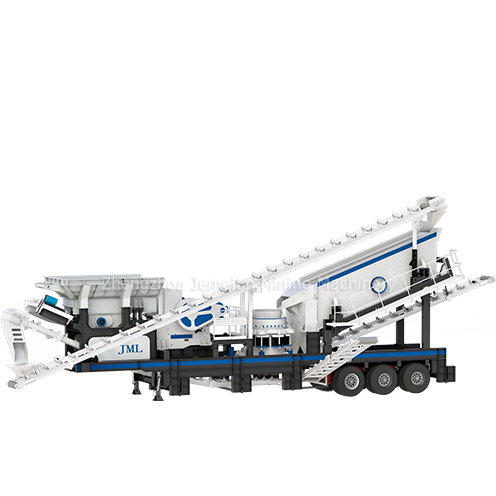

Multi-combination mobile crusher is a kind of combined mobile crushing station which installs a variety of equipment on the mobile frame. There are commonly four combined mobile crushing stations and three combined mobile crushing stations. Combined mobile crushing station set coarse crushing, medium crushing, fine crushing in one, without other equipment can independently complete the operation, economical, simple, suitable for small and medium production scale.
Strong complete set, reasonable combination and compact, very low requirements on the work site.
Steering traction shaft of combined mobile crushing station is convenient for road transportation and transition operation.
Combined mobile crushing station can be directly opened into the raw material production site to reduce material transportation costs.
Multi-combination mobile crusher can be used for host switching to meet user's personalized needs.

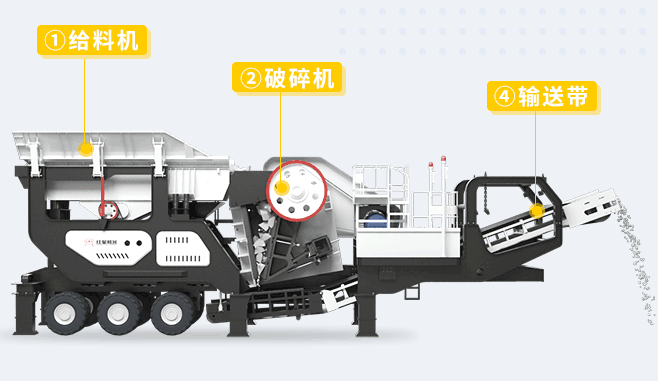

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.
| Item | Unit | ME46C24 | ME57C24 |
| Transportation Length | mm | 13700 | 14000 |
| Transportation Width | mm | 2800 | 2800 |
| Transportation Height | mm | 4500 | 4600 |
| Ma×imum Length | mm | 14500 | 14650 |
| Ma×imum Width | mm | 2800 | 2800 |
| Ma×imum Height | mm | 5830 | 5980 |
| Weight | t | 38 | 45 |
| Tire Configuration | Dual-a×ial | Dual-a×ial | |
| Vibrating Feeder | GZD960×3800 | GZD960×3800 | |
| Crusher | PE400×600 | PE500×750 | |
| Discharging Belt Conveyor | B650 × 6.5M | B650 × 6.5M | |
| Belt Conveyor above Vibrating Screen | B650 × 10.5M | B650 × 10.5M | |
| Vibrating Screen | 3YZS1237 | 3YZS1237 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
