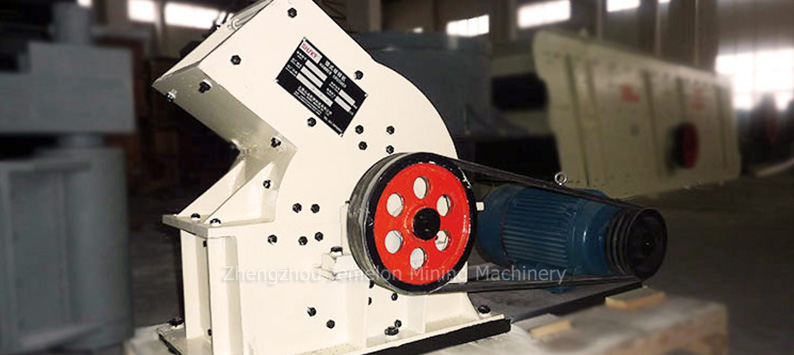

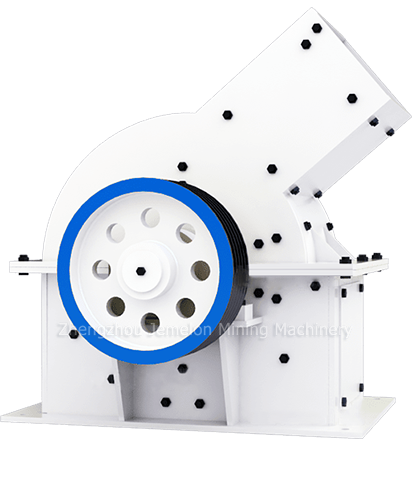

PC Hammer Crusher

Using in Cement, coal, metallurgical materials, construction materials, road construction and petroleum industry.

Applications: Crushing medium soft materials of various dry and wet materials.

50-600 T/HCapacity 400-750Max.feeding Size（mm）

+86-15037172876*24-hourWhatsapp/Wechat

01Product Brief Introduction

The hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and material, and the hammer crusher (hammer mill) has the features of simple structure, high reduction ratio, high efficiency, etc. The PC hammer crusher (hammer mill) is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum & chemical industries.

02Product Brief Introduction

The working hammer uses new technology of wear-resisting and impacting resistance.
The output size can be adopted by the need of customers.
Sealing structure ，hygienic and environmentally friendly.

The crushing unit has closed structure, solved the problems of dust pollution and frame leak in crushing plant.
Compact structure and convenient maintenance.

The whole design has features of handsome appearance, tight structure, less quick wearing part, easy maintenance, it’s a kind of upgrade and update product.

03Working Principle

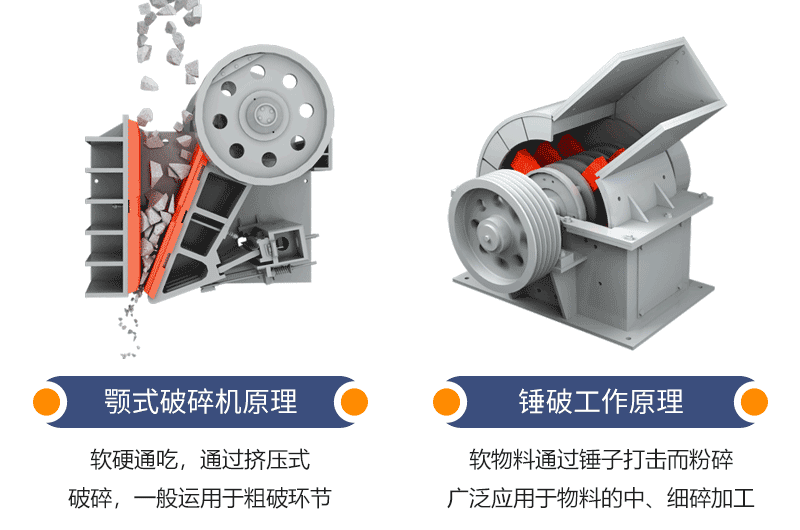

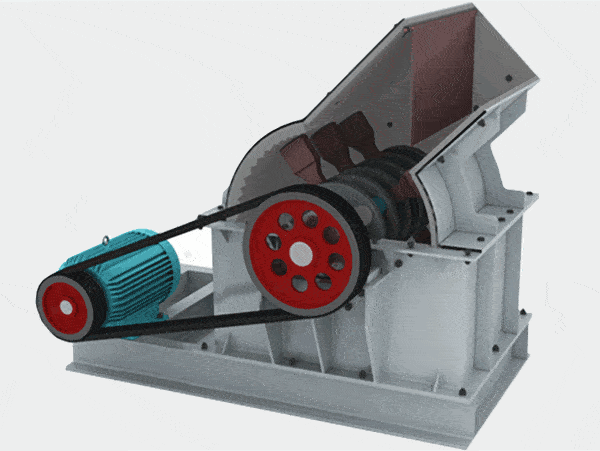

Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assembly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size. The size of the final product can be adjusted by changing the grate, the gap between the rotor assembly and the grate can also be adjusted according to different requirements.

04Technical Parameters

PC Hammer Crusher

Model	Rotor diameter (mm)	Feeding port size (mm)	Feeding size(mm)	Capacity (t/h)	Power(kw)	Dimensions (mm)
PC0706	700×570	618×510	≤400	50-70	75	1950×1340×1480
PC0808	800×750	780×610	≤500	80-100	132	2280×1790×1670
PC0910	900×1000	1070×750	≤600	150-200	110×2	2600×2200×1940
PC1012	1000×1180	1255×810	≤650	250-300	132×2	2800×2310×2210
PC1213	1200×1280	1350×900	≤750	300-350	160×2	2970×2580×2510
PC1216	1270×1490	920×1530	≤750	400-500	200×2	3070×2840×2580
PC1220	1220 ×1950	920×2000	≤750	500-600	220×2	3080×3380×2580
