Hydro power, railways, highways, concrete mixing stations, ore crushing and other industries;
Applications: Granite, limestone, concrete, limestone, coal, calcium carbide, quartz, dolomite, iron sulfide
+86-13298311030*24-hourWhatsapp/Wechat

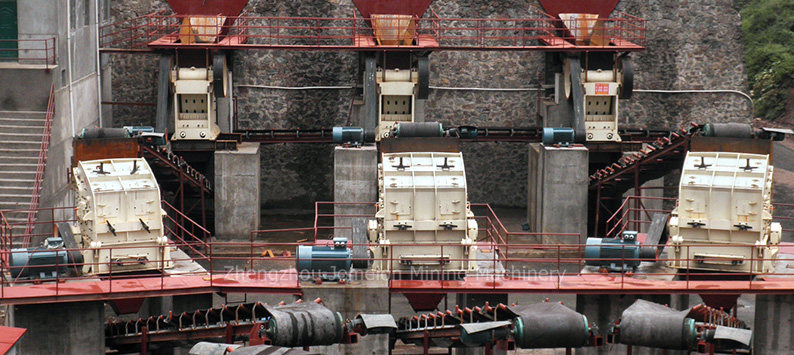

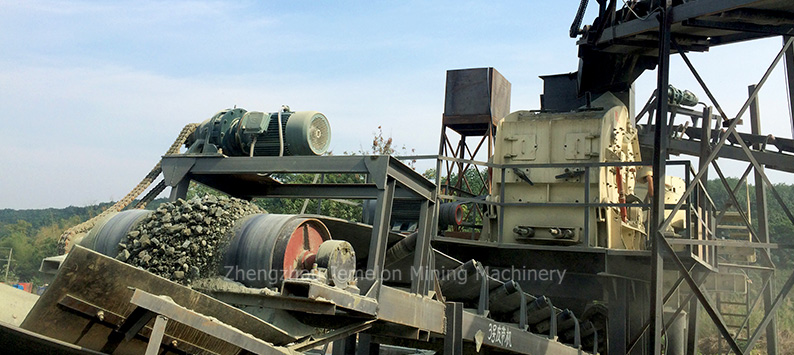

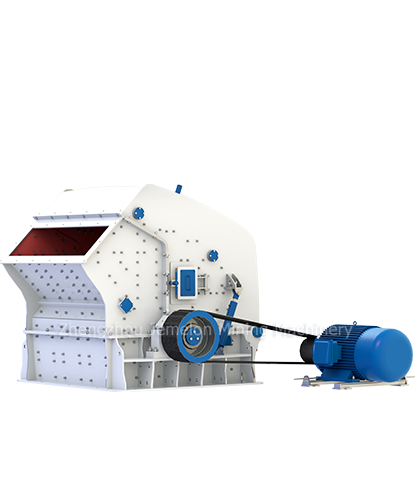

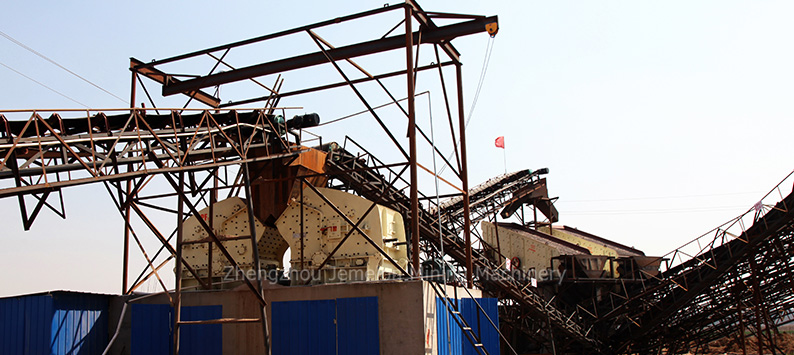

Impact crusher is an important equipment for secondary crushing. On the basis of absorbing advanced technology from home and abroad, Jemelon adopted the latest manufacturing craftsmanship as well as unique design and developed the latest PF series impact crusher with considering the specific mining conditions of domestic sand industry. The adoption of no-board connection and hydraulic valve not only reduces the customer's operation cost, but also improves the production efficiency. Finished products are cubic without tension or cracks, and the shape is quite good. It can crush various coarse, medium and fine materials with maximum size less than 600mm and compressive strength no more than 350MPa. Besides, the crushing specification is various. Now it has been widely used in ore crushing, railway, highway, energy, cement, chemical, construction and other industries.
It has a big feed opening and a high crushing chamber.
Materials of high hardness and big size can be crushed by it, and the product is of less powder.

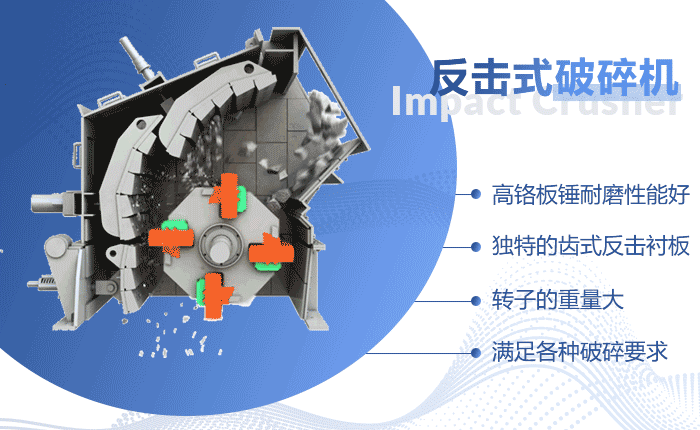

The space between the impact plate and the blow bar can be adjusted conveniently. The particle size is controled effectively. The product is of good shape.
It has a compact structure and can resist strong forces. Its totor has a great rotational inertia.

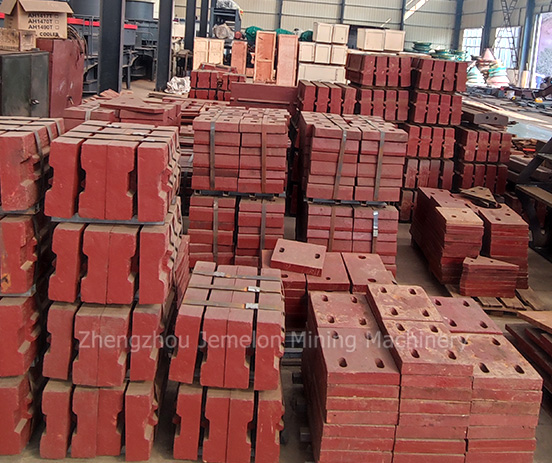

Chrome hammer is used and can bear impacts, abrading and can impact with a great force.
The no- board connection makes it easy to repaire and maintain.
It has more crushing functions and is of bigger productivity, less wearing, higher comprehensive benefits.
Impact crusher can be used to crush various kinds of coarse, medium and fine materials(granite, limestone, concrete etc.). For the board hammer is easily worn, its applications on the hard materials are limited. It is commonly used to coarse, medium and fine crush brittle materials with medium hard and blow compressive strength such as limestone, coal, calcium carbide, quartz, dolomite, iron sulphide ore, gypsum and chemical materials. This equipment is widely used in ore crushing, construction of railway, highway, energy, cement, chemical, building and other industries. The size for the layout is adjustable. It can produce materials which can meet many requirements.
|
Model |
Rotor Size (mm/inch) |
Feeding Opening (mm/inch) |
Max.Feeding Size(mm/inch) |
Capacity (t/h) |
Motor Power (kw) |
Weight (T) |
Overall Dimensions (mm) |
|
PF-1007 |
Φ1000×700 (Φ40"×28") |
400×730 (16"×29") |
250(10") |
15-60 |
37-55 |
9.8 |
2440×1580×2672 |
|
PF-1010 |
Φ1035×1050 (Φ41"×42") |
400×1080 (16"×43") |
300(12") |
50-90 |
55-75 |
12.8 |
2650×2150×2900 |
|
PF-1210 |
Φ1250×1050 (Φ50"×42") |
400×1080 (16"×43") |
300(12") |
70-130 |
110-132 |
17 |
2800×2150×2900 |
|
PF-1214 |
Φ1250×1400 (Φ50"×56") |
400×1430 (16"×57") |
300(12") |
90-180 |
132-160 |
20.8 |
2850×2400×2900 |
|
PF-1315 |
Φ1320×1500 (Φ52"×60") |
860×1520 (34"×60") |
350(14") |
120-250 |
180-220 |
24.8 |
3100×2800×3160 |
|
PF-1318 |
Φ1320×1500 (Φ52"×72") |
880×2000 (35"×80") |
350(14") |
150-260 |
220-260 |
26.8 |
3100×3210×2613 |
|
PF-1320 |
Φ1320×2000 (Φ52"×80") |
900×2030 (36"×81") |
500(20") |
160-350 |
260-300 |
34 |
3320×3218×2613 |
|
PF-1520 |
Φ1512×2000 (Φ60"×80") |
1315×2040 (52"×81") |
700(28") |
350-450 |
400-450 |
44 |
4138×3422×3649 |
|
PF-1620 |
Φ1612×2000 (Φ64"×80") |
1315×2040 (52"×81") |
700(28") |
400-600 |
500 |
47 |
4236×3572×3735 |
|
PF-1820 |
Φ1800×2000 (Φ72"×80") |
1620×2040 (64"×81") |
700(28") |
550-800 |
630-710 |
66 |
4471×3250×4008 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
