sand making or shaping for dry mortar, building materials, machine-made sand and various metallurgical slags.
Applications: Limestone, river stone, mountain stone, blue stone, pebble, weathered sand, basalt, granite, quartz, diabase,etc.
+86-15037172876*24-hourWhatsapp/Wechat

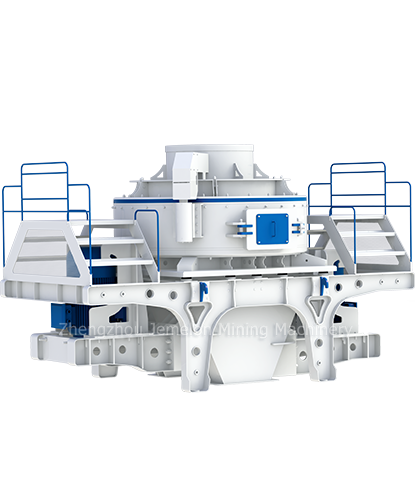

VSI sand making machine is the latest successful new generation sand making machine with the international advanced technology. Technology accumulation of many years and modern processing equipment ensure the leading position of the VSI sand making machine in this industry. Excellent cost performance and reliability make VSI sand making machine outstanding in the similar products. VSI sand making machine is the perfect combination of the latest research result of Germany and Chinese present working conditions.
With the traditional equipment with the same motor power, it increases 30% output.
Excellent designed impact angle in crushing chamber reduces frication between materials and it, consequently reduces 30% operating cost.
Cubic and good shape, fineness modulus can be adjusted, especially suitable for making artificial sand and stone reshaping. It is proved that the reshaping achievement increases 30%.
Hydraulic cover opening device is more convenient and easier to replace the wearing parts in crushing cavity. Decreases the downtime and saves time and energy.
Light in weight and diverse means to install. It is very easy to install, maintain, use and repair, if we have a concrete purpose, just adjust it slightly, we could make full use of it.

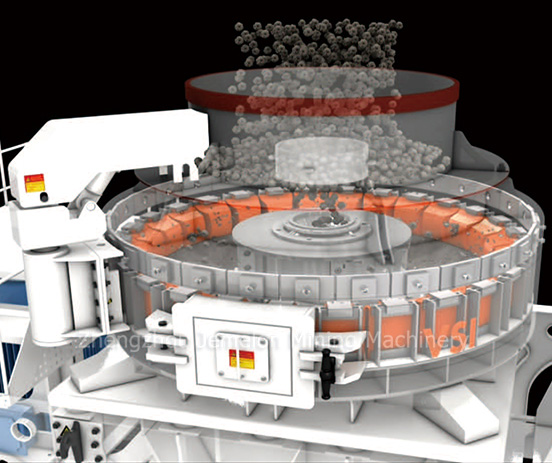

There are wide ranges of crushing chambers and unique crushing structure can make stone hits stone and stone hits iron simultaneously. If we have different purposes，just adjust few parts, we could use it for artificial sand, sand reshaping etc.
VSI series vertical shaft impact crusher is the latest successful sand making machine with the international advanced technology.Many years technology accumulation and modern processing equipment ensure the leading position of the VSI vertical shaft impact crusher in this industry. Excellent cost performance and reliability make VSI vertical shaft impact crusher outstanding in the similar products.VSI vertical shaft impact crusher is the perfect combination of the latest research result of Germany and Chinese present working conditions. It is currently the fifth generation of exclusive production sand making machine with the worlds advanced level.
| Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | VSI-1145 | ||
|
Capacity (th) |
Center and Ring Feeding |
120-180 | 200-260 | 300-380 | 450-520 | 500-640 | |
|
Center Feeding |
60-90 | 100-130 | 150-190 | 225-260 | 250-360 | ||
|
Max.Feeding Size (mm) |
Soft Material |
<35 | <40 | <45 | <50 | <50 | |
|
Hard Material |
<30 | <35 | <40 | <45 | <45 | ||
| Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | ||
| Power for Double Motor (KW) | 110-150 | 180-220 | 264-320 | 400-440 | 400-440 | ||
| Power Source | 380V；50Hz | ||||||
|
Lubrication Hydraulic Pressure Station |
Motor power(kw) |
2×0.31 | |||||
| Safety |
The double oil pumps ensure the supply of the oil; Stop working without oil or hydraulic pressure;Temperature falls when the water cools;Start the motor by heating it in winter.
|
||||||
|
Overall Dimension (mm) |
820×520×1270 | ||||||
|
Power for Oil Box Heater (kw) |
2 | ||||||
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
