It is mainly used for crushing materials widely used in building materials, metallurgy, chemical industry, mining, refractory materials, cement, abrasive and other industries.
Applications: Pebble, limestone, granite, basalt, pyroxene, andesite, ore tailings, stone debris artificial sand, quartz, feldspar, calcite, talc, ceramics, marble, dolomite, bauxite, iron ore and so on.
+86-13298311030*24-hourWhatsapp/Wechat

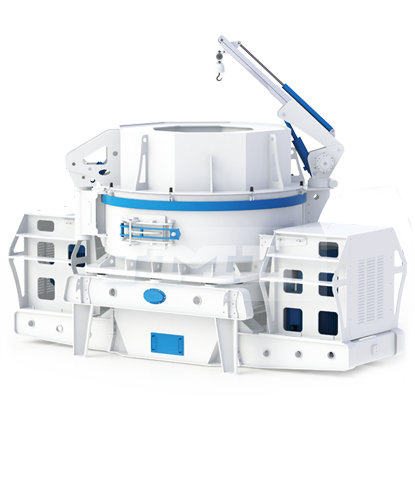

V6S new sand making machine is a crushing equipment with lower unit cost, higher crushing efficiency and intelligent operation control developed by our company based on the original high-performance VSI series and combined with the actual operation of the equipment under different working conditions and the feedback suggestions of the operator. By improving feeding mode, optimizing crushing chamber type, adopting new rotor design, adding lifting device and so on, the machine can significantly reduce the material flow resistance, improve the material passing capacity, reduce the wear rate of wearing parts, improve the energy utilization rate, prolong the maintenance cycle, shorten the maintenance time consumption. Now it has become a representative high performance crushing sand equipment in sand machine.
Feeding mode is improved and easier to adjust; higher spindle speed and greater crushing chamber increased the machine’s capacity in actual production.

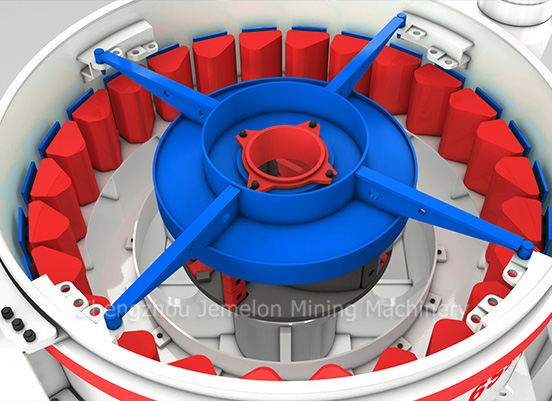

The optimized crushing chamber makes the best impact angle and reduces friction of wear parts, which directly reduce the cost.
Self-strike crushing principle enables the machine to produce the best particle-shape aggregates.
Hydraulic cover lifting device makes it’s more convenient to inspect and maintain the crushing cavity’s inner parts. Hydraulic lifting device and motor seat adjustment device can significantly reduce downtime.
The alarm device will give signals if the machine is dysfunctional, then the equipment stop to work quickly to protect the sand making machine.
The most advanced oil lubrication station in China; Two complementary oil pumps and automatic detection of oil, which ensures no oil flow out. Oil cooling and heating device makes sure that the bearing lubrication is always in the best condition, which extends maintain interval and service life of the bearing.
The running vibration is light.
Flexible application. The flexible conversion of "stone-hit-stone" and "stone-hit-iron" crushing principle can be applied not only in traditional quarry enterprises, but also in industrial minerals and professional crushing fields.

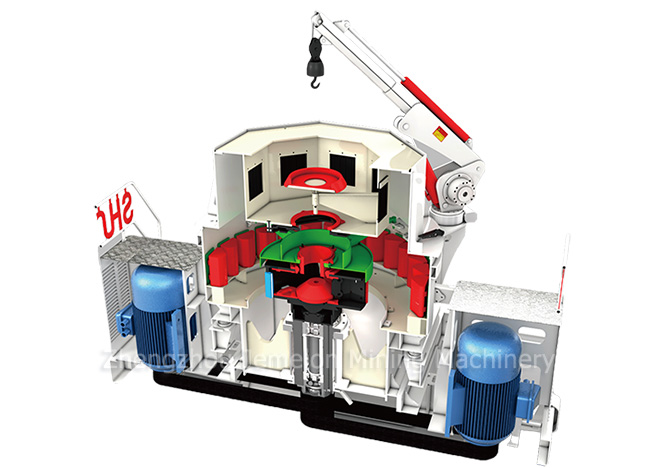

Materials are constantly conveyed to the stuff distributing plate of sand making machine and piled up. When crammed the chamber, the materials naturally fall into the hopper. After getting into the rotating impeller, they are accelerated by the high speed rotating impeller, and then shot through the tunnels around the impeller which can be 10 times of gravity acceleration. These materials in high speed crash with those in free falling (stone on stone), and then impact the plate that fixed on the whirlpool cavity (stone on iron). They will be rebounded and repeat the process again, thus the materials are constantly crushed. After impacted for several times in the whirlpool cavity, the crushed materials will be excluded through the bottom discharging hole.
|
Model |
V6S-9832 |
V6S-1250 |
V6S-1363 |
V6S-1371 |
||
|
Capacity（T/H） |
Center and ring feeding |
298-335 |
520-650 |
580-720 |
630-800 |
|
|
Center feeding |
236-268 |
325-400 |
468-518 |
485-580 |
||
|
Max. feeding length（mm） |
Soft material |
＜50 |
＜50 |
＜50 |
＜50 |
|
|
Hard material |
＜45 |
＜45 |
＜45 |
＜45 |
||
|
Rotation speed（r/min） |
1360-1510 |
1100-1310 |
980-1180 |
980-1180 |
||
|
Power of two motors（kw） |
160×2 |
250×2 |
315×2 |
355×2 |
||
|
Dimension（mm） |
5110×2890×3010 |
5600×2990×3200 |
5600×3040×3290 |
5600×3060×3310 |
||
|
Power source |
380V 50Hz |
|||||
|
Monitoring range of vibration sensor |
0.1-20mm/ continuous and adjustable |
|||||
|
Hydraulic lubrication station |
Motor power（kw） |
2×0.31 |
||||
|
Safety |
Complementary double pumps ensure oil supply; no oil flow; no-oil-hydraulic-automatic-protection; water cooling; heating boot of motor in winter |
|||||
|
Dimension（mm） |
820×520×1270 |
|||||
|
Power of tank heater（kw） |
2 |
|||||
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
