Hydro power, railways, highways, concrete mixing stations, ore crushing and other industries;
Applications: Granite, limestone, concrete, limestone, coal, calcium carbide, quartz, dolomite, iron sulfide
+86-15037172876*24-hourWhatsapp/Wechat

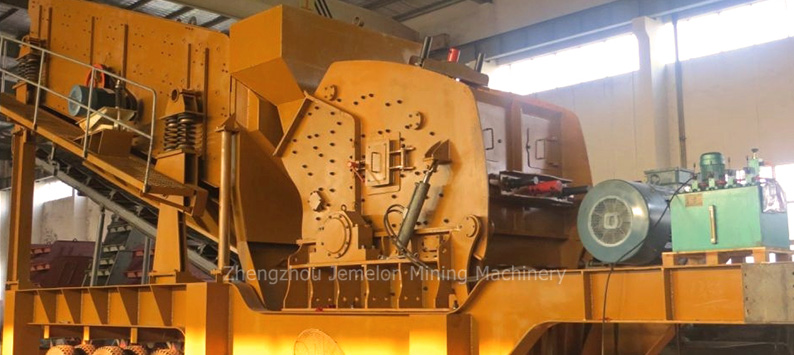

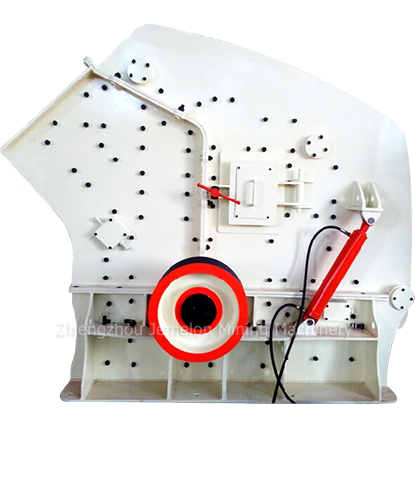

HPF series hydraulic impact crusher is designed with international technology and world-class manufacturing process based on PF impact crusher. The HPF hydraulic impact crusher applies to crush hard material and ore. The maintenance and replacement of vulnerable part is easier because of the hydraulic adjustment for opening size. Three –curtain cavity design makes it perform well in the fine crushing and superfine fine crushing operation.
Wicket on frame makes it convenient for maintenance and inspection.
Adoption of the world-class manufacturing processes and the most high-end raw materials.

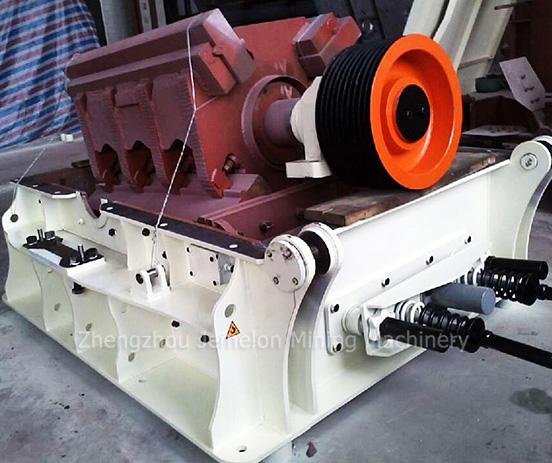

Integral bearing and cast steel structure, which is perfectly cooperated with rack, enhances radial strength of the bearing.
The special plate hammer fixtures make it more convenient for maintenance and disassembly.
New adjustment device shorten the time of halting and overhaul.
International advanced bearing, stronger carrying capacity and longer service life.
Strict and high standard testing method ensures reliable.

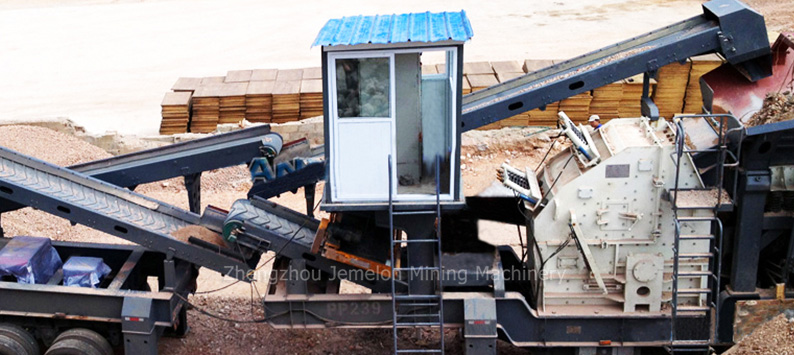

HPF Impact Crusher can be used to crush various kinds of coarse, medium and fine materials(granite, limestone, concrete etc.). For the board hammer is easily worn, its applications on the hard materials are limited. It is commonly used to coarse, medium and fine crush brittle materials with medium hard and blow compressive strength such as limestone, coal, calcium carbide, quartz, dolomite, iron sulphide ore, gypsum and chemical materials. This equipment is widely used in ore crushing, construction of railway, highway, energy, cement, chemical, building and other industries. The size for the layout is adjustable. It can produce materials which can meet many requirements.
|
Model |
Rotor Size (mm/inch) |
Feeding Opening (mm/inch) |
Ma×. Feeding Size (mm/inch) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Overall Dimensions (mm) |
|
HPF-1210 |
Φ1250×1050 (Φ50"×42") |
400×1080(16"×43") |
300(12") |
70-130 |
110-132 |
17 |
2800×2150×2900 |
|
HPF-1214 |
Φ1250×1400 0Φ50"×56") |
400×1430(16"×57") |
300(12") |
90-180 |
132-160 |
20.8 |
2850×2400×2900 |
|
HPF-1315 |
Φ1320×1500 (Φ52"×60") |
860×1520(34"×60") |
350(14") |
120-250 |
180-220 |
24.8 |
3100×2800×3160 |
|
HPF-1318 |
Φ1320×1800 (Φ52"×72") |
880×2000(35"×80") |
350(14") |
150-260 |
220-260 |
26.8 |
3100×3210×2613 |
|
HPF-1320 |
Φ1320×2000 (Φ52"×80") |
900×2030(36"×81") |
500(20") |
160-350 |
260-300 |
34 |
3320×3218×2613 |
|
HPF-1520 |
Φ1512×2000 (Φ60"×80") |
1315×2040(52"×81") |
700(28") |
300-500 |
350-450 |
44 |
4138×3422×3649 |
Basalt
cobblestone
Dolomite
Marble
Limestone
Calcite
Potassium Feldspar
